SMD2835 高光效LED软灯条-80灯/米 (160-180LM/W)

产品描述:

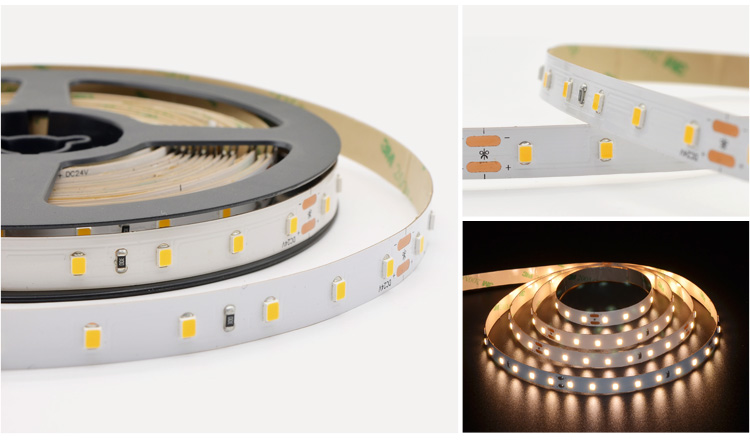

High luminous efficiency LED strip-80LED/M (160-180LM/W)

Parameter:
Power:12W/Meter High Luminous efficiency SMD2835LED Epistar Chip
CRI>80 160LM-190LM/Watt; CRI>90 130LM/Watt
Input Voltage:DC24V
Size:5000MM*10MM/Roll
LED quantity:80LED/Meter
LED quantity/unit:80LED/Meter DC24V 8LEDS/Unit can cut
Color:2700K/3000K/4000K/6000K
Warranty: 5years

Model No.	LUX-2835X80R-W24-10	LEDS/M	80LED/M
Input Voltage	DC24V	Working Hours	50000H
Power	12W/M	Working Temperature	-25℃~+45℃
CRI	>80	Cuttable Length(MM)	100MM
Bram Angle	120°	PCB Width(MM)	10MM

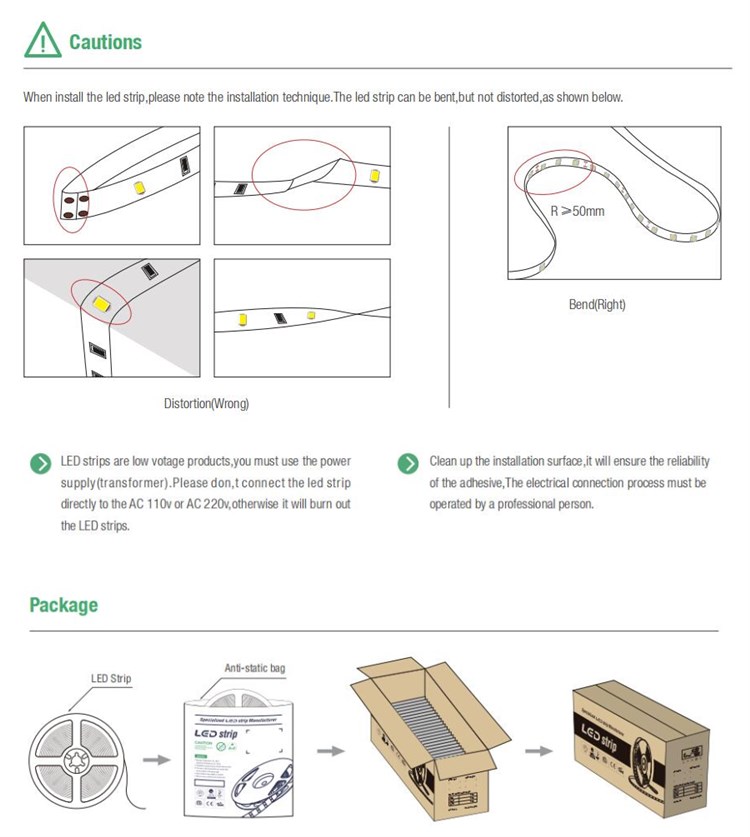

Installation:
Power Supply:Using DC24Consistant Voltage driver;We recommend one 120W Power supply for 5meters LED strip
Connection:Notice the anode and cathode;Please don't connect oppositely
Cutting:DC24V-8LEDS for a unit can be cutted

Features:
High brightness
Long life span,standard warranty 3years for waterproof led strip,standard warranty 5years for Non-waterproof
Complete cut/connection accessories
No need of constant-current power feed
Low power consumption

Application:
Cove lighting
Architectural lights for canopy,corridor,windoe,archway
Backlight or edge lighting for signage
DIY lights for home use
Path and contour marking
Decorative lights for holiday,event,show,exhibition
